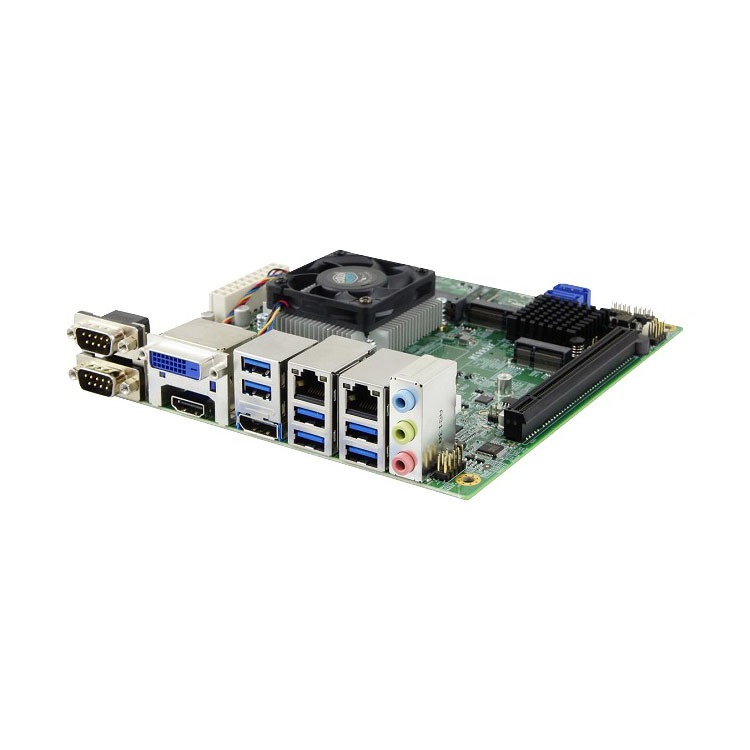

MI995 iBASE Motherboard

The MI995 is a low-power Mini-ITX based on the latest 8th Gen Intel® Core™ / Xeon® E family processors and Intel® CM246/QM370 mobile chipset. It delivers stunning graphics and media performance and supports up to three independent displays in eDP, HDMI 2.0a, DVI-D and DisplayPort outputs, which makes it ideal for gaming/entertainment, digital signage and POS applications. The motherboard has two DDR4-2666 SO-DIMM sockets accepting up to 32GB memory with ECC. Apart from enhanced performance of CPU and graphics, the MI995 features optimized I/O with onboard 6x USB 3.1, 4x USB 2.0, 4x COM, and up to 4x SATA III to empower real-time IoT and data-intensive applications.The MI995 is available in three variants – supporting Intel CM246/Xeon E-2176M, Intel QM370/Core i7-8850H, and Intel QM370/Core™ i5-8400H, all with dual Intel Gigabit Ethernet. Additionally, it provides 1x PCIe(x16), 1x Mini PCIe, and 2x M.2 slots for NVMe drives and wireless devices, such as WiFi and Bluetooth. Advanced features include iAMT (11.6) for remote system management, TPM (2.0) for systems integrity, and iSMART technology that enables energy-efficient systems.

MI995 Features

  • 8th Gen Intel® Xeon® E/ Core™ i7/ i5/ i3
  • 2x DDR4 SO-DIMM sockets, Max. 32GB
  • Supports eDP, HDMI(2.0a) / DVI-D and DisplayPort
  • 2x Intel® Gigabit LAN
  • 6x USB 3.1, 4x USB 2.0, 4x COM, 4x SATA III

Request Quote

The MI995 is a low-power Mini-ITX based on the latest 8th Gen Intel® Core™ / Xeon® E family processors and Intel® CM246/QM370 mobile chipset. It delivers stunning graphics and media performance and supports up to three independent displays in eDP, HDMI 2.0a, DVI-D and DisplayPort outputs, which makes it ideal for gaming/entertainment, digital signage and POS applications. The motherboard has two DDR4-2666 SO-DIMM sockets accepting up to 32GB memory with ECC. Apart from enhanced performance of CPU and graphics, the MI995 features optimized I/O with onboard 6x USB 3.1, 4x USB 2.0, 4x COM, and up to 4x SATA III to empower real-time IoT and data-intensive applications.

The MI995 is available in three variants – supporting Intel CM246/Xeon E-2176M, Intel QM370/Core i7-8850H, and Intel QM370/Core™ i5-8400H, all with dual Intel Gigabit Ethernet. Additionally, it provides 1x PCIe(x16), 1x Mini PCIe, and 2x M.2 slots for NVMe drives and wireless devices, such as WiFi and Bluetooth. Advanced features include iAMT (11.6) for remote system management, TPM (2.0) for systems integrity, and iSMART technology that enables energy-efficient systems.

Specification
Manufacturer or BrandiBASE
Mounting FormatOEM
Form FactorMini-ITX System
ProcessorIntel
CertificationsCE, RoHs
Operating Temperature0°C~60°C ( 32°F~140°F)
Storage Temperature-20°C~80°C (-4°F~176°F)
Humidity90% (non-condensing @60°C)
Dimensions170mm x 170mm (6.7“ x 6.7“)
Warranty1 Year Limited
Ordering Info
  • MI995VF-X27 Intel® CM246/ Xeon® E-2176M Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6),iSMART (3.5), CPU cooler on board
  • MI995VF-8850 Intel® QM370/ Core™i7-8850H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6),iSMART (3.5),CPU cooler on board
  • MI995VF-8400 Intel® QM370/ Core™i5-8400H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6),iSMART (3.5),CPU cooler on board
AudioIntel® [CNL PCH-H integrated] built-in High Definition Audio controller + Realtek ALC888S w/ 7.1 channels
BIOSAMI
Chipset

MI995VF-X27: Intel® CM246 PCH
MI995VF-8850/8400: Intel® QM370 PCH

CPU PackageFCBGA1440 for 8th Gen Intel® Xeon® E / Core i7/i5/i3 processors
Expansion Slots

1x PCI-E(16x), 1x Mini PCI-E,
1 x M.2 (M-key, type:2280, NVMe)
1 x M.2 (E-Key, type:2230, CNVi)

H/W MonitorYes
I/O Chipset

Fintek F81964D-I
2x RS232/422/485, 2x RS232

LAN Connector2x RJ-45 on board
LAN Controller

LAN 1:
Intel® I219LM Gigabit LAN PHY (MI995VF-Series)
Intel® I219V Gigabit LAN PHY (MI995EF)
LAN 2:
Intel® I210AT Gigabit LAN (MI995VF-X27)
Intel® I211AT Gigabit LAN (MI995VF-8850/8400, MI995EF)

Max. Power Requirement

Intel Core i5-8400H, 2.50GHz, w/ 2 x 16GB DDR4-2133
+12V: 3.01A
+5V: 1.43A
+5VSB: 0.15A
+3.3V: 0.32A

SSDmSATA, M.2
System Memory2x DDR4-2666 SO-DIMM socket, Max. 32GB (support ECC by CPU SKUs)
USB

6x USB3.1 onboard
4x USB 2.0 via pin header

VGA Controller8th Gen Intel® Xeon®/ Core™ i7/i5/i3 processor integrated
VGA MemoryShared memory
Watchdog Timer256 levels

No Related Posts

    • 8th Gen Intel® Xeon® E/ Core™ i7/ i5/ i3
    • 2x DDR4 SO-DIMM sockets, Max. 32GB
    • Supports eDP, HDMI(2.0a) / DVI-D and DisplayPort
    • 2x Intel® Gigabit LAN
    • 6x USB 3.1, 4x USB 2.0, 4x COM, 4x SATA III
    • 1x PCI-E(16x), 1x Mini PCI-E, 2x M.2
    • Watchdog timer, Digital I/O, iAMT(11.6), TPM(2.0), iSMART, vPRO (MI995VF series)
    The iBASE MI995 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE MI995 Motherboard are listed below:-

    • IOT
    • Kiosk and Self-Service
    • Medical Consoles
    • Medical Equipment
    • Smart Factory
    • Sound Editing Desks
    • Video Editing Desks
    • Medical Station

    These are just some of the applications for the iBASE MI995 Motherboard The potential applications extend further than those shown above. For further information about the iBASE MI995 Motherboard or to check if the product is suitable for your application, please do not hesitate to contact us.
    With our highly trained in house technical team and strong relationship with our manufacturers, we can offer numerous options and configurations for the iBASE MI995 Motherboard to suit your requirements. These options include:

    • Processor
    • Memory
    • Storage

    If your application requires unusual or individual modifications not listed above for the iBASE MI995 Motherboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

    The iBASE MI995 Motherboard has a 1 Year Limited against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

    To obtain service under this warranty, the warranty-eligible product, iBASE MI995 Motherboard, must be presented to us here in the UK.
