RKB-A361-CTB-BL USB RKB-A361-CTB-BL PS2 RKB-A361-CTB-BL IP65-RATED RKB-A361-CTB-BL TRACKBALL RKB-A361-CTB-BL CUSTOMISABLE


RKB-A343TP-MDT_1 RUGGED Keyboard

RKB-A343TP-MDT_1 RUGGED Keyboard

RKB-A361-CTB-BT-Braille RUGGED Keyboard

RKB-A361-CTB-BT-Braille RUGGED Keyboard

RKB-A361-CTB-BL RUGGED Keyboard

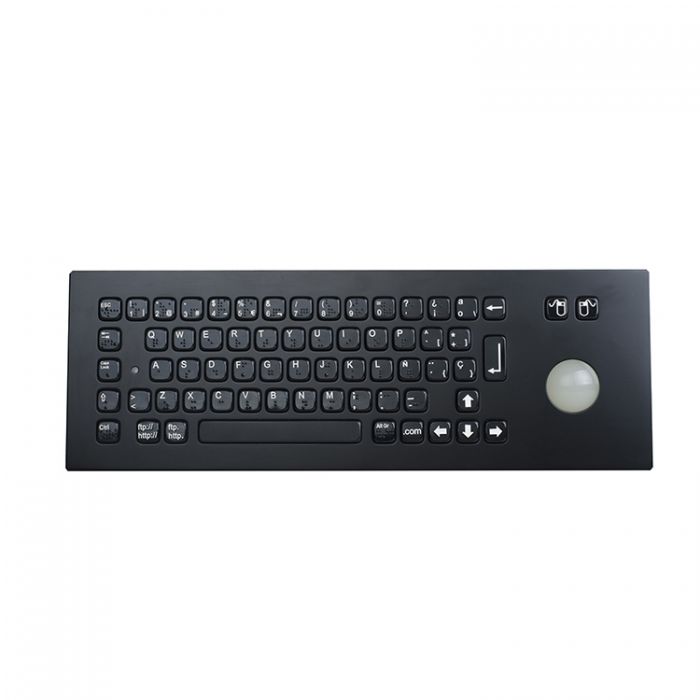

69 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard IP65 static rated 38mm Transparent Mechanical Trackball Module with touch changeable chameleon backlight and 400 DPI resolutions

RKB-A361-CTB-BL Features

  • Backlight Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

RKB-A361-CTB-BL Keyboard Options



69 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard IP65 static rated 38mm Transparent Mechanical Trackball Module with touch changeable chameleon backlight and 400 DPI resolutions, industrial PCB with carbon-on-gold key switch technology with long stroke 2.0mm with extremely good tactile feeling for fast and accurate input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution. Adjustable industrial backlight included.

Specification
Manufacturer or Brand RUGGED
Mounting Format Panel Mount
IP Rating IP65
Interface PS2, USB
Case Material Stainless Steel
Certifications RoHS Compliant, CE and FCC, ESD
Temperature Rating STORAGE: 30C to +70C OPERATING: 20C to +60C
Dimensions 361.0mm x 125.0mm (front panel) , 343.0mm x 105.0mm (back panel)
Warranty 1 Year Limited Warranty
Compatibility All windows, Linux, Unix, Mac OSX
EMC Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004
EMI EN 55022: 2010
EMS EN 55024:2010
Key Material Stainless Steel
Key Switch Carbon-on-Gold key Switch Technology
Lifespan > 10 Million Actuations
Mounting Filter Panel Mount
MTBF >50000H
MTTR <30min
No. Of Keys 69
Pointing Device Trackball
Power +5V DC +/-5% appr. 30mA
Product Weight 1.80KGs
  • Backlight Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request
The RUGGED RKB-A361-CTB-BL is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RUGGED RKB-A361-CTB-BL Keyboard are listed below:-

  • Factory Floor
  • Helicopter Consoles
  • Industrial Automation
  • Kiosk and Self-Service
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the RUGGED RKB-A361-CTB-BL Keyboard The potential applications extend further than those shown above. For further information about the RUGGED RKB-A361-CTB-BL Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RUGGED RKB-A361-CTB-BL Keyboard to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the RUGGED RKB-A361-CTB-BL Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The RUGGED RKB-A361-CTB-BL Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, RUGGED RKB-A361-CTB-BL Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
