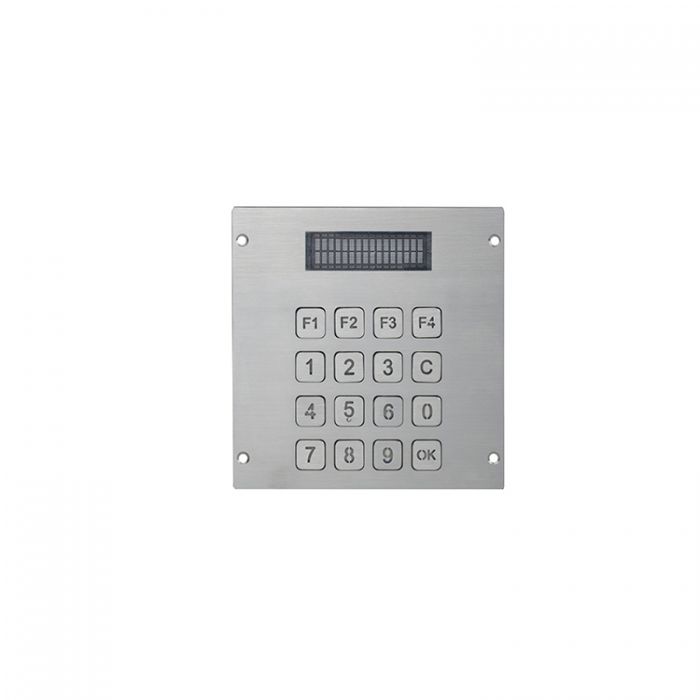

RKP-B130-AC-LCD-BL-DWP RUGGED Keypad
Compact format IP67 dynamic waterproof vandal proof Stainless Steel industrial matrix keypad with integrated dot matrix LCD display
RKP-B130-AC-LCD-BL-DWP Features
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
- Stainless Steel Construction
keys compact format IP67 dynamic waterproof vandal proof Stainless Steel industrial matrix keypad with dot matrix LCD display integrated, industrial dot matrix numeric keypad with industrial metal dome PCB with socket on the back for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included. Top stainless steel plate with 4 mounting holes for top panel mounting solution. Backlight (red/blue/white/green) optional.
Dimensions:130.0mm × 152.5.0mm (front panel)
| Manufacturer or Brand | RUGGED |
|---|---|
| Mounting Format | Panel Mount |
| IP Rating | IP67 |
| Interface | PS2, USB |
| Case Material | Stainless Steel |
| Housing Colour | Stainless Steel |
| Certifications | RoHS Compliant, CE and FCC, ESD |
| Operating Temperature | Operating temperature:-20C to +60C |
| Storage Temperature | Storage temperature: -30C to +70C |
| Temperature Rating | Operating temperature:-20C to +60C - Storage temperature: -30C to +70C |
| Humidity | 30-90% Humidity Resistant |
| Dimensions | 82.10mm x 70.40mm |
| Width | 152.5.0mm |
| Length | 130.0mm |
| Warranty | 1 Year Limited Warranty |
| Base plate Material | Epoxy resin gilding |
| Compatibility | All Windows and Macintosh Operating Systems |
| Dimension with Trackball | 482.6mm x 133.3mm |
| EMC | Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Frontplate Material | Zinc Alloy Chromed |
| Height | 14.9mm |
| Key Material | carbon-on-gold key switch |
| Lifespan | > 5 years |
| Material (Bottom Plate) | Stainless Steel Plate |
| Mounting Filter | Panel Mount |
| MTBF | >50000H |
| MTTR | <30min |
| No. Of Keys | 16 |
| Operating Force | 160-180 drams |
| Pointing Device | Trackball |
| Power | +5V DC +/-5% |
| Product Weight | 1.0Kg. |
| Resolution | 440 edges/revolution |
| Supply Current | < 100ohm |
| Supply Voltage | +5V DC +/-5% |
| Switch / Key Travel | 2.0 mm |
| Trackball Diameter | 38.1mm (1.5’) |
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
- Stainless Steel Construction
The RUGGED RKP-B130-AC-LCD-BL-DWP
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RUGGED RKP-B130-AC-LCD-BL-DWP Keypad are listed below:-
These are just some of the applications for the RUGGED RKP-B130-AC-LCD-BL-DWP Keypad The potential applications extend further than those shown above. For further information about the RUGGED RKP-B130-AC-LCD-BL-DWP Keypad
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Access Control
- Broadcast Consoles
- Computer Consoles
- Industrial Automation
- Smart Factory
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RUGGED RKP-B130-AC-LCD-BL-DWP Keypad to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the RUGGED RKP-B130-AC-LCD-BL-DWP Keypad, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Cable Type
- Cable Length
- Interface
- Keypad Layout
The RUGGED RKP-B130-AC-LCD-BL-DWP Keypad has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, RUGGED RKP-B130-AC-LCD-BL-DWP Keypad, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
