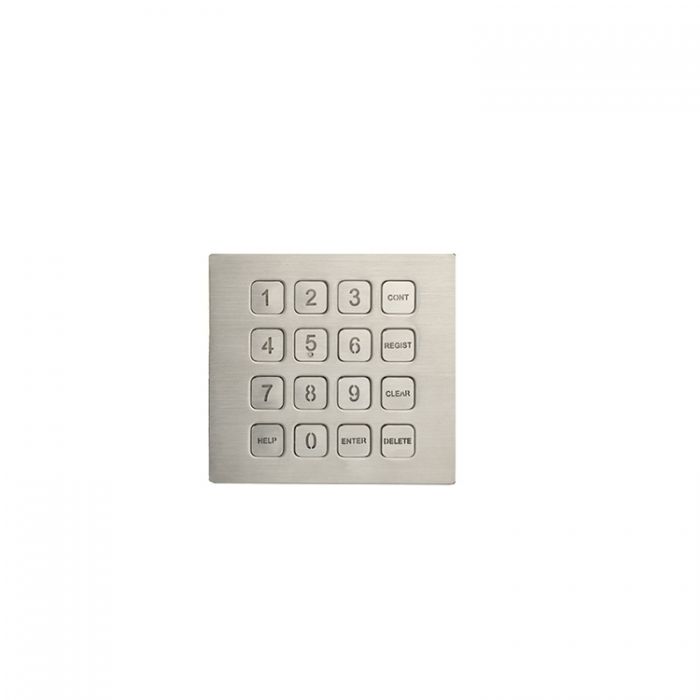

RKP-B86 RUGGED Keypad
16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing
RKP-B86 Features
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included. (Red/blue/white/green optional), top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution.
Dimensions: 106.0mm x 98.0mm (front panel)
| Manufacturer or Brand | RUGGED |
|---|---|
| Mounting Format | Panel Mount |
| IP Rating | IP67 |
| Interface | PS2, RS232, RS485, USB |
| Case Material | Stainless Steel |
| Housing Colour | Stainless Steel |
| Certifications | RoHS Compliant, CE and FCC, ESD |
| Operating Temperature | Operating temperature:-20C to +60C |
| Storage Temperature | Storage temperature: -30C to +70C |
| Temperature Rating | Operating temperature:-20C to +60C - Storage temperature: -30C to +70C |
| Humidity | 30-90% Humidity Resistant |
| Dimensions | 86.00mm x 90.0mm |
| Width | 90.0mm |
| Length | 86.00mm |
| Warranty | 1 Year Limited Warranty |
| Base plate Material | Epoxy resin gilding |
| Compatibility | All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
| EMC | EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003 |
| EMI | EN 50081-1 |
| EMS | EN 50082-1 |
| Frontplate Material | 1.5mm Thickness Super Quality Brushed Stainless Steel |
| Key Material | Stainless Steel |
| Key Spacing | 14.0mm x 14.0mm for normal keys |
| Key Switch | Gold-on-Gold key Switch Technology |
| Lifespan | > 5 years |
| Material (Bottom Plate) | Back Stainless Steel Housing: 1.0mm Thickness Super Quality Stainless Steel |
| Mounting Filter | Panel Mount |
| MTBF | >50000H |
| MTTR | <30min |
| No. Of Keys | 16 |
| Operating Force | 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) |
| Supply Current | appr. 20mA |
| Supply Voltage | +5V DC +/-5% |
| Switch / Key Travel | 0.45mm |
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
The RUGGED RKP-B86
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RUGGED RKP-B86 Keypad are listed below:-
These are just some of the applications for the RUGGED RKP-B86 Keypad The potential applications extend further than those shown above. For further information about the RUGGED RKP-B86 Keypad
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Access Control
- Broadcast Consoles
- Computer Consoles
- Industrial Automation
- Smart Factory
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RUGGED RKP-B86 Keypad to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the RUGGED RKP-B86 Keypad, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Cable Type
- Cable Length
- Interface
- Keypad Layout
The RUGGED RKP-B86 Keypad has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, RUGGED RKP-B86 Keypad, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
