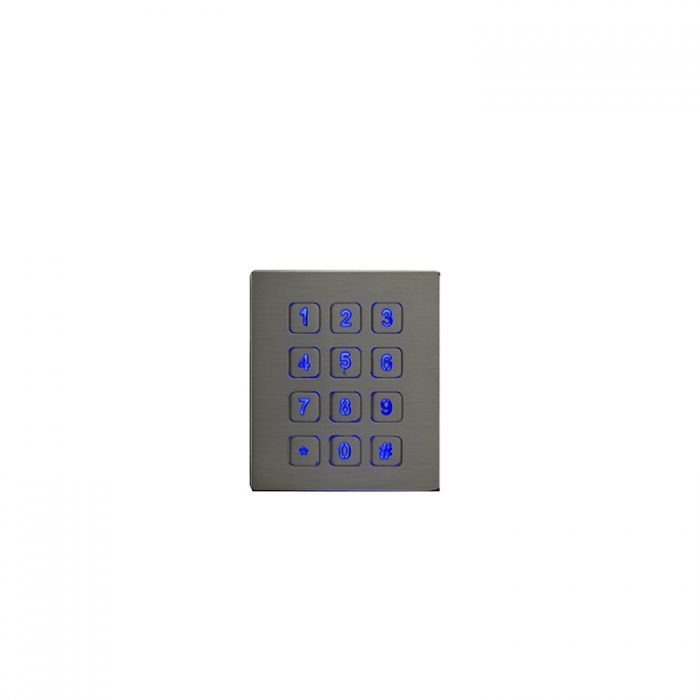

RKP-B88-BL RUGGED Keypad
12 keys compact format IP67 dynamic vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing
RKP-B88-BL Features
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
12 keys compact format IP67 dynamic vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included(Red/blue/white/green optional),top stainless steel plate with welded studs and water-tight gasket for easy mounting and tightening to enclosure or panel. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Dimension:88.0mm x 102.0mm (front panel)
| Manufacturer or Brand | RUGGED |
|---|---|
| Mounting Format | Panel Mount |
| IP Rating | IP67 |
| Interface | PS2, RS232, RS485, USB |
| Case Material | Stainless Steel |
| Housing Colour | Stainless Steel |
| Certifications | RoHS Compliant, CE and FCC, ESD |
| Operating Temperature | Operating temperature:-20C to +60C |
| Storage Temperature | Storage temperature: -30C to +70C |
| Temperature Rating | Operating temperature:-20C to +60C - Storage temperature: -30C to +70C |
| Humidity | 30-90% Humidity Resistant |
| Dimensions | 88.0mm x 102.0mm |
| Width | 102.0mm |
| Length | 88.0mm |
| Warranty | 1 Year Limited Warranty |
| Base plate Material | Epoxy resin gilding |
| Compatibility | All windows, Linux, Unix, Mac OSX |
| EMC | IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Frontplate Material | 1.5mm Thickness Super Quality Brushed Stainless Steel |
| Key Material | Stainless Steel |
| Key Spacing | 14.0mm x 14.0mm for normal keys |
| Key Switch | Gold-on-Gold key Switch Technology |
| Lifespan | > 5 years |
| Material (Bottom Plate) | Back Stainless Steel Housing: 1.0mm Thickness Super Quality Stainless Steel |
| Mounting Filter | Panel Mount |
| MTBF | >50000H |
| MTTR | <30min |
| No. Of Keys | 12 |
| Operating Force | 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) |
| Supply Current | appr. 10mA |
| Supply Voltage | +5V DC +/-5% |
| Switch / Key Travel | 0.45mm |
- Rugged Panel Mount Keypad
- IP67 Rated
- Stainless Steel Construction
The RUGGED RKP-B88-BL
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RUGGED RKP-B88-BL Keypad are listed below:-
These are just some of the applications for the RUGGED RKP-B88-BL Keypad The potential applications extend further than those shown above. For further information about the RUGGED RKP-B88-BL Keypad
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Access Control
- Broadcast Consoles
- Computer Consoles
- Industrial Automation
- Smart Factory
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RUGGED RKP-B88-BL Keypad to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the RUGGED RKP-B88-BL Keypad, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Cable Type
- Cable Length
- Interface
- Keypad Layout
The RUGGED RKP-B88-BL Keypad has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, RUGGED RKP-B88-BL Keypad, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
