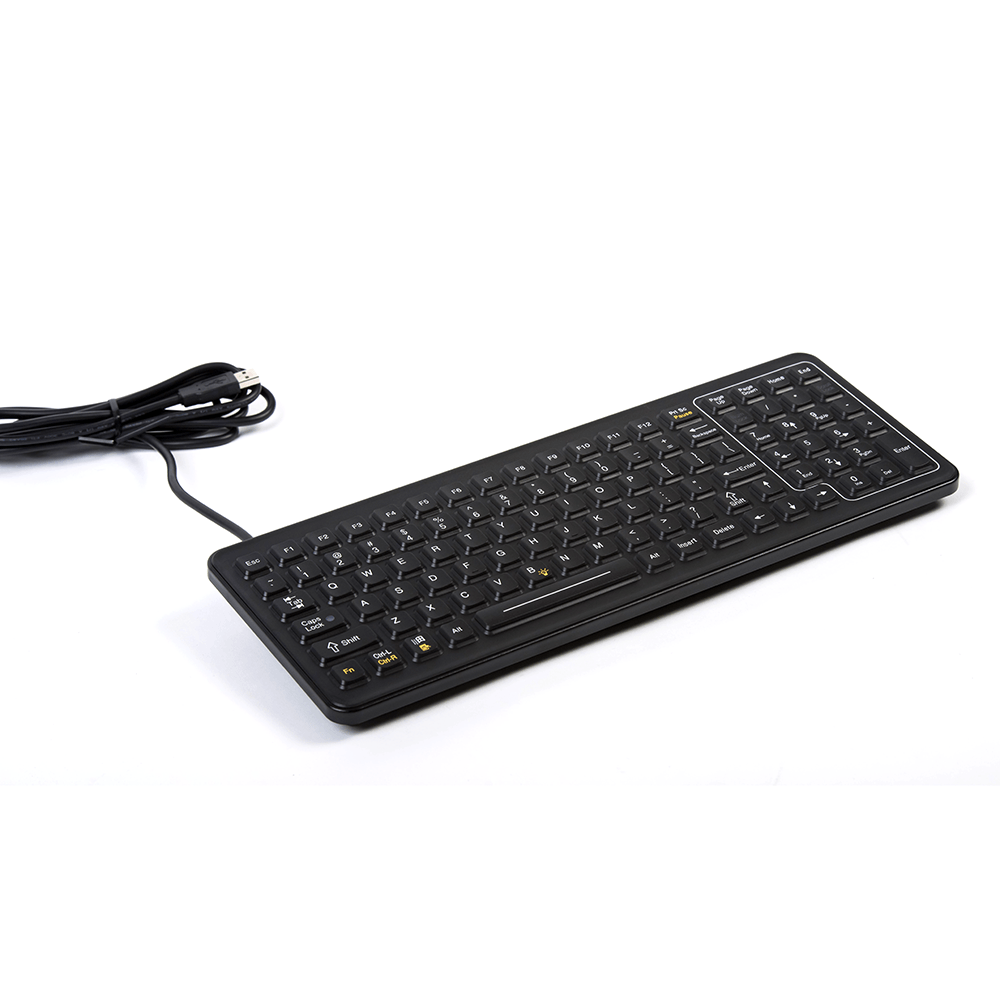

SLK-101-8L iKey Keyboard
iKey’s SlimKey™ SLK-101-8L keyboard provides full-sized versatility in a rugged, compact design. It features eight levels of green LED backlighting, and is also available in a night vision (NVIS) compatible configuration.
SLK-101-8L Features
- Eight levels of GREEN LED Backlighting
- Slim, Compact Design
- Meets MIL-STD-461E
- ABS Polycarbonate Frame
- Large Numeric Pad
iKey’s SlimKey™ SLK-101-8L keyboard provides full-sized versatility in a rugged, compact design. It features eight levels of green LED backlighting, and is also available in a night vision (NVIS) compatible configuration. Engineered for NEMA 4X protection from dust, water and corrosive liquids, the SLK-101-8L is ideal for use in military applications. The large numeric pad on the SLK-101-8L allows for easy data entry, while the robust polycarbonate case stands up in the roughest of conditions. Ideal for harsh EMI environments, this rugged keyboard is designed to meet MIL-STD-461 specifications.
| Manufacturer or Brand | iKey |
|---|---|
| Mounting Format | Desktop, Vehicle Mount, VESA |
| IP Rating | IP67 |
| Interface | PS2, USB |
| Case Material | ABS Polycarbonate |
| Housing Colour | Black |
| Function Keys | 12 Keys |
| Backlight | Green |
| Certifications | NEMA 4X UL60950, FCC Part 15 Class B |
| Operating Temperature | OPERATING: -40C to +70C (-40F to +158F) |
| Storage Temperature | STORAGE: -40C to +90C (-40F to +194F) |
| Temperature Rating | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Humidity | 100% Humidity Resistant |
| Shock | 3x11 ms pulses of 50g on each of 3 axis |
| Dimensions | 14.60" x 5.55" x 0.92" (w-h-d) 370.8mm x 141mm x 23.4mm |
| Warranty | 1 Year Limited Warranty |
| Backlight | Integrated Green Backlighting - NVIS Green Optional |
| Colour | Black |
| Compatibility | USB KEYBOARD: All Windows and Macintosh OS |
| Function Keys | 12 Function Keys |
| Key Material | Industrial Silicone Rubber, Tactile with Mechanical Snap |
| Key Switch | ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) |
| Lifespan | 10 Million Cycles + |
| No. Of Keys | 101 |
| Operating Force | ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) |
| Power | USB: 210mA@5V (from CPU port) |
| Product Weight | 2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg) |
| Shock | 3x11 ms pulses of 50g on each of 3 axis |
| Supply Current | 210mA@5V |
| Supply Voltage | 5 Volts |
| Switch Force | 7.05 oz +/- 1.06 oz (200g +/- 30g) |
| Switch / Key Travel | 0.055 in. (1.4mm) |
| Temperature Range | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
- Eight levels of GREEN LED Backlighting
- Slim, Compact Design
- Meets MIL-STD-461E
- ABS Polycarbonate Frame
- Large Numeric Pad
The iKey SLK-101-8L
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey SLK-101-8L Keyboard are listed below:-
These are just some of the applications for the iKey SLK-101-8L Keyboard The potential applications extend further than those shown above. For further information about the iKey SLK-101-8L Keyboard
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Helicopter Consoles
- Industrial PCs
- Manufacturing Plant
- Marine Consoles
- Military
- Miltary Consoles
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey SLK-101-8L Keyboard to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the iKey SLK-101-8L Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Keyboard Layout
- Keyboard Language
- Cable Type
- Cable Length
- Interface
- Backlight Colour
- Custom Logo
- Epoxy Coating
- Conformal Coating
- PU Coating
- Matt Silicone Coating
- Anti-Bacterial Coating
The iKey SLK-101-8L Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, iKey SLK-101-8L Keyboard, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
