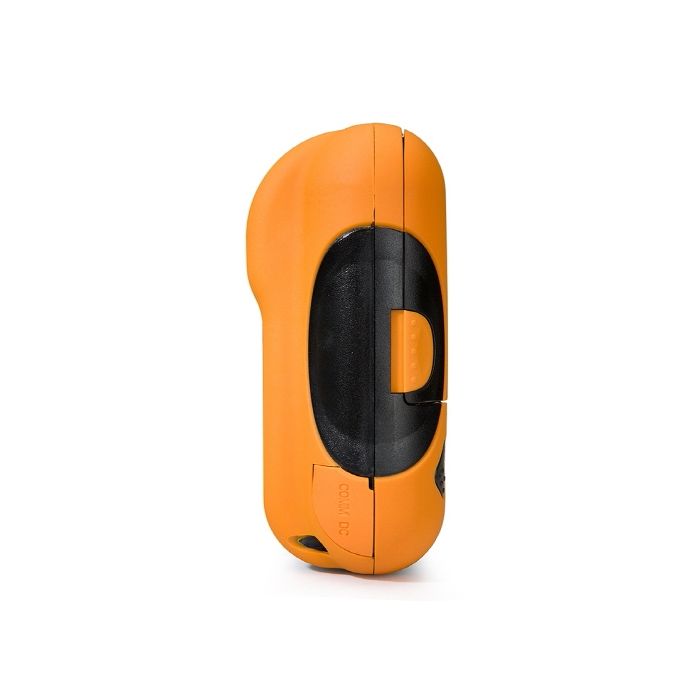

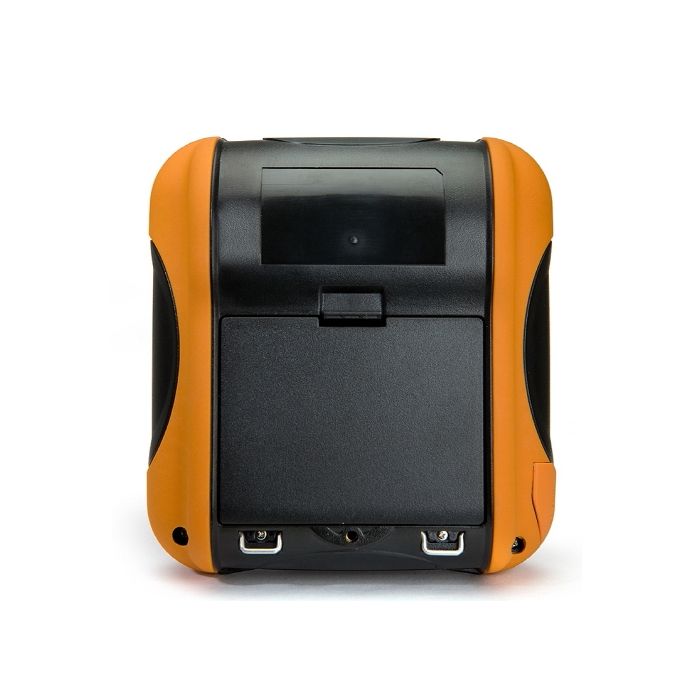

The WSP-I family of rugged industrial printers are certified IP54 resistant to water and dust. They can also withstand a drop of 1.8m onto concrete making them ideal for mobile receipting, door to door selling (or collecting) and outdoor event POS.
Manufacturer or Brand | Woosim Systems |
---|---|
Mounting Format | ClipOn, Mobile |
IP Rating | IP54 |
Interface | Bluetooth |
Processor | Intel |
Processor Type | Intel Core i5 |
Case Material | Plastic |
Housing Colour | Grey |
Certifications | CE, RoHS compliant |
Operating Temperature | Rating: Intel 6th Gen. Processor: Rating: -20C ~ 55C Rating: with 0.5 m/s airflow (Industrial Grade HDD ) Rating: Intel Atom Processor: Rating: -10C ~ 55C (J1900) Rating: - |
Storage Temperature | Rating: -4F ~ 158F (-20C ~ 70C) |
Temperature Rating | OPERATING: -10C to +50C |
Humidity | 30 to 80% |
Dimensions | 120 x 131 x 58mm |
Warranty | 1 Year Limited Warranty |
Barcodes Supported | 1D , 2D , CODABAR , Code 39 , Code128 , Code93 , DATA Matrix , EAN , I2/5 , JAN , KAN , Micro PDF417 , PDF417 , QR Code , UPC |
Battery | 7.4V DC Li-ion 1.8 or 2.2A h |
Case Colour | Orange |
Characters Per Line | 64 |
Character Size | 9x24, 12x24, 16x24, 24x24 dots |
Charger | Input: 100~240V AC 50~60Hz, Output:8.4V DC |
Cutting System | Tear bar |
Data Buffer | 1M Bytes |
Flow Control | Software - XON/XOFF (Hardware flow control not supported) |
Full Recharge | 4 hours, provides 1 hour continuous printing @ 25% duty cycle |
Interfaces | RS-232C & Bluetooth, USB & WiFi (options) |
LCD | 128 x 32 dots FSTN (Blue LED Backlight) |
MCBF Head | 50 km |
MCBF Mechanism | 37,000,000 lines |
Media | Thermal paper roll, Thermal label roll |
Magnetic Stripe Reader | Tracks 1 & 2 or Tracks 2 & 3 |
Paper Width | 80mm |
Printing Speed | 60mm/second |
Printing System | Direct Thermal, Clamshell Easy load |
Print Width | 3 inch (72mm), 576 dots |
Resolution | 203 dpi, 8 dots/mm |
Roll Diameter | 50mm |
Roll Length | 24m (Note *2) |
Sensors | Head open, Paper out, Black mark |
Smart Card Reader | ISO 7816 Compliant (EMV level 1 Certified) 1 SAM (Security Application Module) |
The Woosim Systems WSP-i350 Printer has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, Woosim Systems WSP-i350 Printer, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
