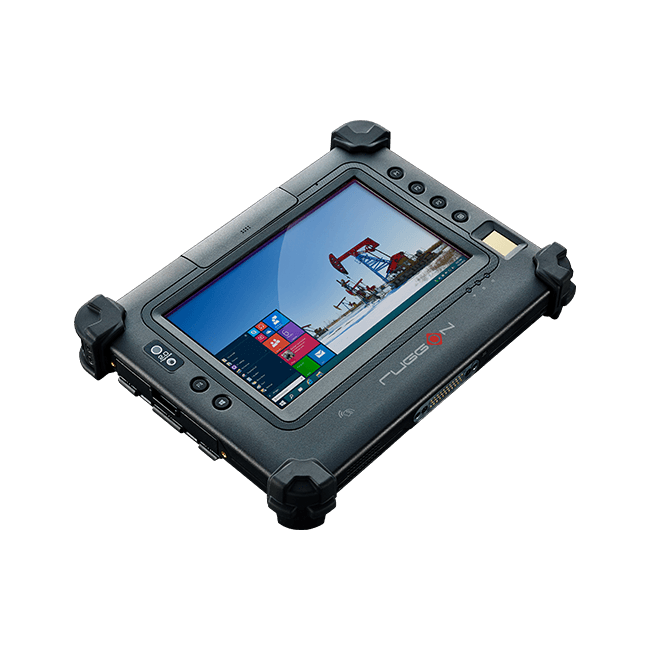

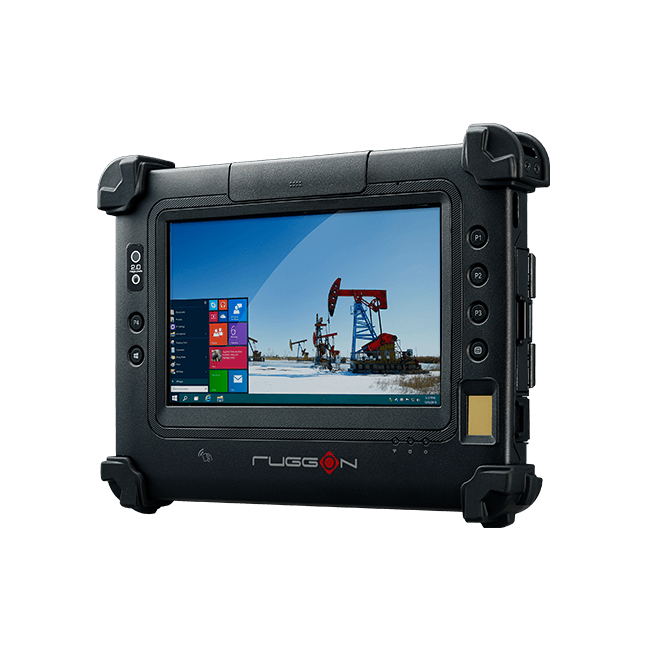

Blaxtone PM-311B RuggON Tablet

With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B provides a high level of security for public safety needs.

Blaxtone PM-311B Features

  • 7" capacitive multi-touch with Gorilla glass
  • 850 nits, optical bonding with AR/AF sunlight readable solution
  • IP65, MIL-STD-810G, 5" drop resistance
  • NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot swappable battery design


With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B provides a high level of security for public safety needs.

Designed to Secure

PM-311B, the world's first ever tablet that can read up to 3 lines of machine-readable zone (MRZ) data - enabling it to capture, identify, and process passport, visa and ID card information. Equipped with a 508-dpi capacitive and high-performance fingerprint reader, PM-311B can collect more detailed and accurate fingerprint characteristics and match them to database.

Best-in-class Visibility

Incorporated with 850 nits class-leading sunlight readable optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

Exceptional Versatility

With all the connectivity options and data capturing capabilities you need in one compact form factor, PM-311B empowers you to do more.

Enhanced Security Perimeters

Beside the encrypted SSD with FIPS 140-2 certification, we also offer Janus USB Ignition Key and a customized button to quickly erase SSD data during emergencies.


Specification
Manufacturer or Brand RuggON
Apply Add To Quote Yes
Mounting Format Car Mount, Free Standing, Mobile, Vehicle Mount, VESA
IP Rating IP65
Screen Size 7"
Processor Intel
Processor Type IntelCeleron
Operating System Windows, Windows 10 IOT, Windows Embeded
Certifications IP65 and MIL-STD-810G certified
Storage Temperature -20℃ to +50℃
Temperature Rating -30℃ to +70℃
Humidity 95%, non-condensing
Shock MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Dimensions (W x H x D) : 22.5 x 16.8 x 2.7 (cm)
Warranty 1 Year Limited
Accessories and Docking Stylus, hand strap, shoulder strap, handle, power adapter
Battery

Standard : 2900 mAh
Extended (option) : 4200 mAh, hot swappable

Box Contents PM-311B, Stylus, hand strap, shoulder strap, handle, power adapter
Buttons

Programmable button x 4
Power, Menu, Windows

Camera

2MP front camera

8MP auto focus rear camera with LED flash

Display

7" WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass

850 nits, Optical Bonding with AR/AF solution

Drop Test 5" drop resistant
Integrated Communications

Gigabit Ethernet (RJ45)
NFC
Wi-Fi 802.11 a/b/g/n/ac
GNSS (GPS, GLONASS, optional BeiDou)
Bluetooth V4.0 + EDR
Optional 4G LTE

I/O Interfaces

USB 3.0 type A x 2
RS-232 x 1
Audio jack x 1
Micro SD slot x 1
Micro SIM slot x 1
Docking connector x 1
Speaker & microphone

Memory DDR3L 4GB RAM, optional 8GB
MEMORY (Installed) DDR3L 4GB RAM
Operating System OS supports Windows 10, Windows 8
Power

Standard : 2900 mAh
Extended (option) : 4200 mAh, hot swappable

Processor, Chipset Intel® Celeron® N2930, 1.83GHz
Ruggedness/Durability

IP65 and MIL-STD-810G certified
Vibration, shock and 5" drop resistant
Operating temp : -20℃ to +50℃

Security

TPM 2.0
Optional fingerprint reader (capacitive type, 508 dpi)
Optional Janus USB Ignition Key, Phoenix SecureWipe

Software DashON
Touchscreen multiple capacitive touch with Gorilla glass
  • 7" capacitive multi-touch with Gorilla glass
  • 850 nits, optical bonding with AR/AF sunlight readable solution
  • IP65, MIL-STD-810G, 5" drop resistance
  • NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot swappable battery design
  • Optional fingerprint and MRZ reader
  • Optional Janus USB Ignition Key, Phoenix SecureWipe
The RuggON Blaxtone PM-311B is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RuggON Blaxtone PM-311B Tablet are listed below:-

  • Access Control
  • Airport Check-in
  • Field Service
  • Forklift Vehicle
  • In Vehicle
  • IOT
  • Police Cars
  • Smart Factory
  • Warehousing
  • Industry 4.0

These are just some of the applications for the RuggON Blaxtone PM-311B Tablet The potential applications extend further than those shown above. For further information about the RuggON Blaxtone PM-311B Tablet or to check if the product is suitable for your application, please do not hesitate to contact us.
With our highly trained in house technical team and strong relationship with our manufacturers, we can offer numerous options and configurations for the RuggON Blaxtone PM-311B Tablet to suit your requirements. These options include:

  • Custom Logo
  • Processor
  • Memory
  • Storage
  • Operating System

If your application requires unusual or individual modifications not listed above for the RuggON Blaxtone PM-311B Tablet, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The RuggON Blaxtone PM-311B Tablet has a 1 Year Limited against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, RuggON Blaxtone PM-311B Tablet, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
