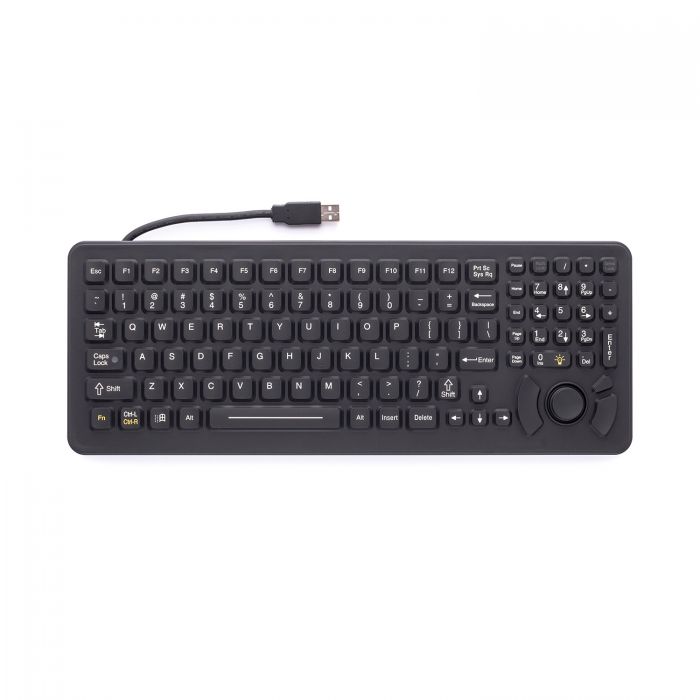

SLK-102 iKey Keyboard

iKey's SlimKey SLK-102 keyboard provides full-size versatility in a rugged, compact design, with the added convenience of an integrated HulaPoint . It features red LED backlit keys for use in areas with minimal lighting.

SLK-102 Features

  • Slim, Compact Design
  • Integrated Pointing Device
  • Integrated LED Backlighting
  • Ms Windows Function Keys
  • Various Keyboard and Language Layout Options


iKey's SlimKey™ SLK-102 keyboard provides full-size versatility in a rugged, compact design, with the added convenience of an integrated HulaPoint;. It features red LED backlit keys for use in areas with minimal lighting. The SlimKey™ SLK-102 is engineered to meet NEMA 4X specifications and is ideal for use in industrial, medical and material handling applications. The large numeric pad on the SLK-102 allows for easy data entry, while the robust polycarbonate case is durable in the roughest of environments.
Specification
Manufacturer or Brand iKey
Apply Add To Quote Yes
Mounting Format Desktop, Free Standing
IP Rating IP66
Interface PS2, USB
Case Material ABS Polycarbonate
Housing Colour Black
Backlight Red
Certifications IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
Temperature Rating STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Humidity 100% Humidity Resistant
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 14.60" x 5.55" x 1.05" (w-h-d) 370.8mm x 141mm x 26.7mm
Warranty 1 Year Limited Warranty
Cable LENGTH: 10' straight (3 m)
Compatibility PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys 12 Keys
Key Feedback Tactile with Mechanical Snap
Key Material Industrial Silicone Rubber
Key Switch MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
Lifespan >10 Million Actuations
Mounting Filter Desktop
No. Of Keys 88
Pointing Device HulaPoint
Power PS/2: KEYBOARD: 210mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port)
Product Weight 1.5 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force 200g (+/- 30g)
Switch / Key Travel 0.055 in (1.4mm)
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
  • Slim, Compact Design
  • Integrated Pointing Device
  • Integrated LED Backlighting
  • Ms Windows Function Keys
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request
The iKey SLK-102 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey SLK-102 Keyboard are listed below:-

  • Accident and Emergency
  • Clinical Engineering
  • Dental Surgeries
  • Factory Floor
  • Food Processing
  • Hospitals
  • Industrial Automation
  • Infection Control
  • Medical Carts
  • Pharmacy
  • Radiology
  • Smart Factory
  • Theatres
  • Veterinary Hospitals
  • Ward Areas
  • Doctors Surgeries
  • Industry 4.0

These are just some of the applications for the iKey SLK-102 Keyboard The potential applications extend further than those shown above. For further information about the iKey SLK-102 Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
With our highly trained in house technical team and strong relationship with our manufacturers, we can offer numerous options and configurations for the iKey SLK-102 Keyboard to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the iKey SLK-102 Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iKey SLK-102 Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iKey SLK-102 Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
